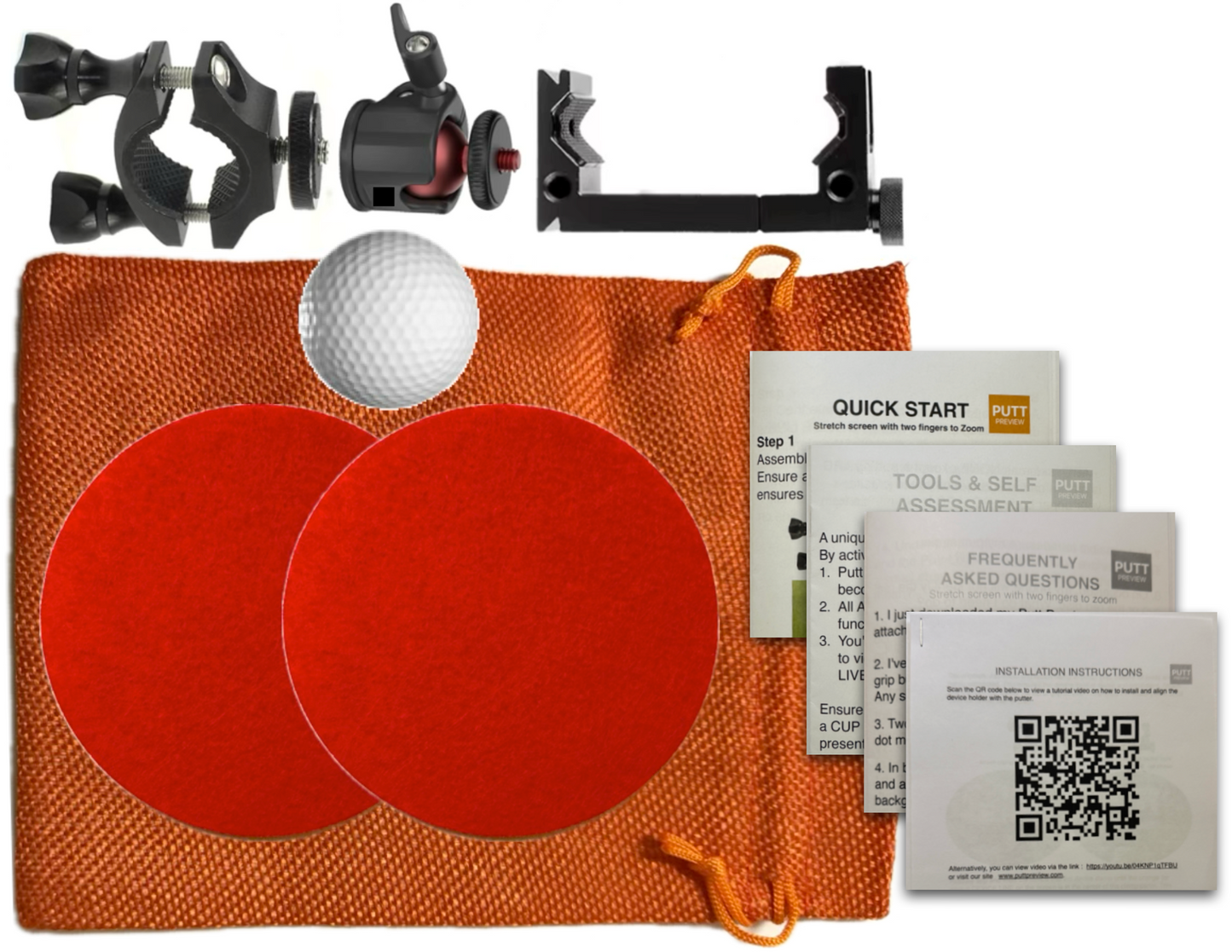

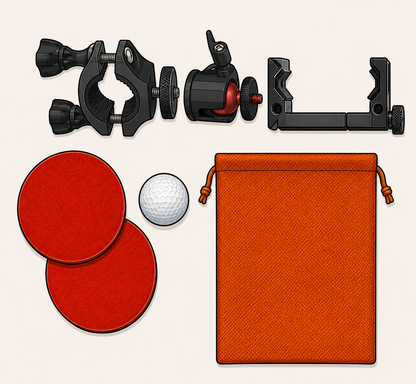

DEVICE HOLDER PACKAGE FOR USE WITH PUTT PREVIEW APPLICATION
This package contains all the components required in order to use the Putt Preview application. In arrives fully assembled and ready for use.
HANDLE CLAMP
Use this metal mount clamp to fix the device holder to the top of the putter grip. As the clamp tightens from the rear, it offers good clearance between the clamp and your putting grip.
The mount is sturdy and stable. Made of aluminum; CNC integrated molding; screws are made of stainless steel.
The 1/4 screw adapter allows a tight fit with the swivel joint while the rubber washer ensure a stable, secure connection.
Suitable for 0.75" to 1.3" diameter putter handles (top diameter ). Makes it suitable for a variety of older and more modern putter handle designs.
Dimensions 2.36 x 1.97 x 0.59 inches
Item weight: 50g
SWIVEL JOINT
For the Putt Preview application, this swivel joint makes it easy to align and calibrate the center of the device screen with the center of the putter face. It has a 360º horizontal swivel and -45º~90º vertical rotation - great for the specific Putt Preview alignment requirement.
Material: Aluminum alloy
Color: Black with red ball joint
Dimensions : 1.5 x 1.5 x 1.2 inches
Item weight: 44g
DEVICE CLAMP
Compatibility: Adjustable width fits iPhone Pro and Pro MAX models: 2.5" to 3.9" widths
Rugged and Protective: Durable aluminum construction with an anodized finish. Silicone pad provides extra grip ensuring your phone stays secure.
Color: Black
Item weight: 88g
Dimensions: 1.0 x 1.5 x 3.4 inches
FELT CUP MARKER DISC
Cup marker is 4" in diameter. It acts as a cup marker: the app AI is trained to recognize this red disc and allocate it as a 'cup'. When the cup marker is detected by Putt Preview, it is replaced with a simulated cup that is regulation size (i.e. 4.25" in diameter). Designed primarily indoor use but can be used in any setting. There are 2 discs in the package.
High quality, stiff felt material
Diameter: 4"
GOLF BALL
We include a white golf ball as the AI training is based on a white ball. Colored balls will not operate correctly. Any white ball will work fine as long as the ball is predominately white.
MISCELLANEOUS
A pouch is included to house the components when not in use.
